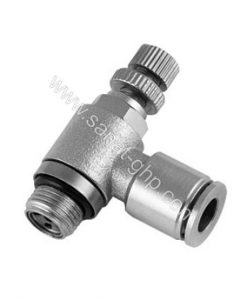

اتصالات پنوماتیک برنجی MSC
اتصالات پنوماتیک برنجی MSC
| Tube(Metric)-Thread(R) | Tube(Metric)-Thread(R) | Tube(Metric)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(R) | Tube(Inch)-Thread(NPT) | Tube(Inch)-Thread(NPT) | Tube(Inch)-Thread(NPT) |
|---|---|---|---|---|---|---|---|
| MSC 4-M5 | MSC 6-03 | MSC 12-01 | MSC 5/32-01 | MSC 3/8-02 | MSC 1/8-U10 | MSC 3/16-N03 | MSC 3/8-N02 |
| MSC 4-M6 | MSC 8-01 | MSC 12-02 | MSC 5/32-02 | MSC 3/8-03 | MSC 1/8-N01 | MSC 1/4-U10 | MSC 3/8-N03 |
| MSC 4-01 | MSC 8-02 | MSC 12-03 | MSC 1/4-01 | MSC 3/8-04 | MSC 1/8-N02 | MSC 1/4-N01 | MSC 3/8-N04 |
| MSC 4-02 | MSC 8-03 | MSC 12-04 | MSC 1/4-02 | MSC 1/2-02 | MSC 5/32-U10 | MSC 1/4-N02 | MSC 1/2-N02 |
| MSC 4-03 | MSC 8-04 | MSC 14-03 | MSC 1/4-03 | MSC 1/2-03 | MSC 5/32-N01 | MSC 1/4-N03 | MSC 1/2-N03 |
| MSC 6-M5 | MSC 10-01 | MSC 14-04 | MSC 5/16-01 | MSC 1/2-04 | MSC 5/32-N02 | MSC 5/16-N01 | MSC 1/2-N04 |
| MSC 6-M6 | MSC 10-02 | MSC 16-03 | MSC 5/16-02 | MSC 3/16-U10 | MSC 5/16-N02 | ||
| MSC 6-01 | MSC 10-03 | MSC 16-04 | MSC 5/16-03 | MSC 3/16-N01 | MSC 5/16-N03 | ||
| MSC 6-02 | MSC 10-04 | MSC 3/8-01 | MSC 3/16-N02 | MSC 3/8-N01 |
